LoxBox Ble 3 channels Bluetooth Datalogger

Specifications

Version	LogBox Ble
Analog Channels	3 channels
Input Types	Pt100 Thermocouple 4-20 mA 0-10 Vdc 0-50 mV (selectable)
Resolution	15 Bit, isolated channels
Record Rate	1 second to 18 hour
Datalogger memory	140.000 record (total)
Digital Input	1 (on-off status or pulse counting)
Power	4 x AA battery and 10...30 Vdc
Alarm	Internal buzzer for local alarm
Output	1 x DO (alarm output)
Display	3 rows Large LCD
Communication	Bluetooth for configuration and data download by mobile devices using Anroid or iOS software tools. USB for local PC connection to do configuration and data dowload, reporting.
Dimension	120x100x40mm

Download

Download

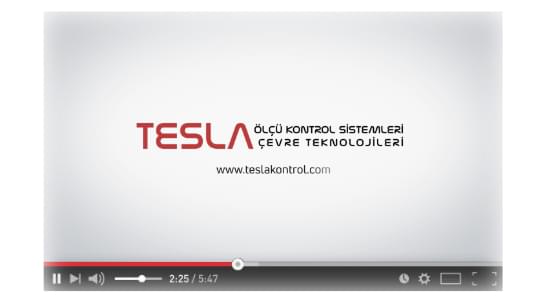

Watch
